Lab #10

Two VLANs spanning two switches

The purpose of this lab is to show how two VLANs can be extended across two different switches.

Experiment steps

1. Recreate the following topology in GNS3. Choose the "GNS3 VM" server to instantiate all the devices of this lab.

The two switches SW1 and SW2 are connected by means of a trunk link, i.e. a link connecting ports of the two switches configured in trunk mode (802.1q).


2. When the devices are still inactive, right-click on the SW1 switch icon and configure it as follows:
• port 0 configured in trunk mode (802.1q) and assigned natively to VLAN 1;
• ports 1, 2, 3, 4 configured in access mode and assigned to VLAN 1 (default VLAN);
• ports 5, 6, 7 configured in access mode and assigned to VLAN 2.




3. Likewise, right-click on the SW2 switch icon and configure it exactly as SW1, i.e. as follows:
• port 0 configured in trunk mode (802.1q) and assigned natively to VLAN 1;
• ports 1, 2, 3, 4 configured in access mode and assigned to VLAN 1 (default VLAN);
• ports 5, 6, 7 configured in access mode and assigned to VLAN 2.

Notice that the trunk link is connected to port 0 of both SW1 and SW2.
VLAN 1 traffic is transmitted as untagged frames on the trunk link.
VLAN 2 traffic is transmitted as 802.1q tagged frames with VLAN ID 2.


4. Start all devices.
5. Start capture on link connecting SW1 to SW2.
6. Open PC1 terminal and execute the command:

   ip 10.10.1.2/24 10.10.1.1

7. Open PC2 terminal and execute the command:

   ip 10.10.1.3/24 10.10.1.1

8. Open PC3 terminal and execute the command:

   ip 10.10.2.2/24 10.10.2.1

9. Open PC4 terminal and execute the command:

   ip 10.10.2.3/24 10.10.2.1

Notice that PC1 and PC2 are configured with a default gateway address 10.10.1.1, but, in fact, this address is not associated to any device.
Likewise, PC3 and PC4 are configured with a default gateway address 10.10.2.1, but, in fact, this address is not associated to any device.

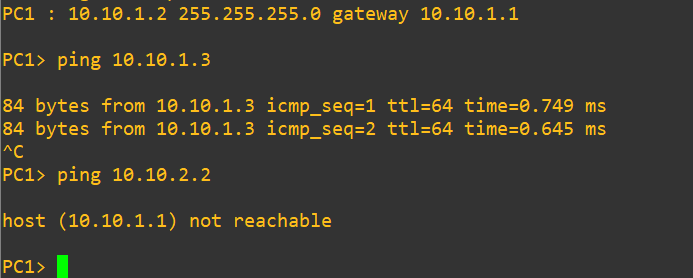

10. In PC1 terminal execute the command:

    ping 10.10.1.3

    and verify that answers are received from PC2.

    ping 10.10.2.2

    and verify that answers are NOT received from PC3.




11. In PC3 terminal execute the command:

    ping 10.10.2.3

    and verify that answers are received from PC4.

    ping 10.10.1.2

    and verify that answers are NOT received from PC1.

Since there is no inter-VLAN routing, the two VLANs are isolated.
Hence, PC1 can only ping PC2, while PC3 can only ping PC4.

Traffic analysis

The following picture shows a sequence of packets captured by Wireshark on the trunk link connecting switch SW1 with SW2 when PC1 pings PC2.
